Hellfire Game Engine

A lightweight, experimental 3D game engine built with modern C++ and OpenGL, featuring an integrated editor and entity-component architecture.

Features

Rendering

  • Modern OpenGL 4.3+ pipeline with custom shader support
  • PBR materials with multi-texturing
  • Instanced rendering for large-scale scenes
  • Directional and spot lighting
  • Skybox support

Scene Management

  • Entity-component system for flexible object composition
  • Hierarchical scene graph with transform inheritance
  • Model importing (OBJ, FBX, glTF via Assimp)
  • Built-in geometry primitives

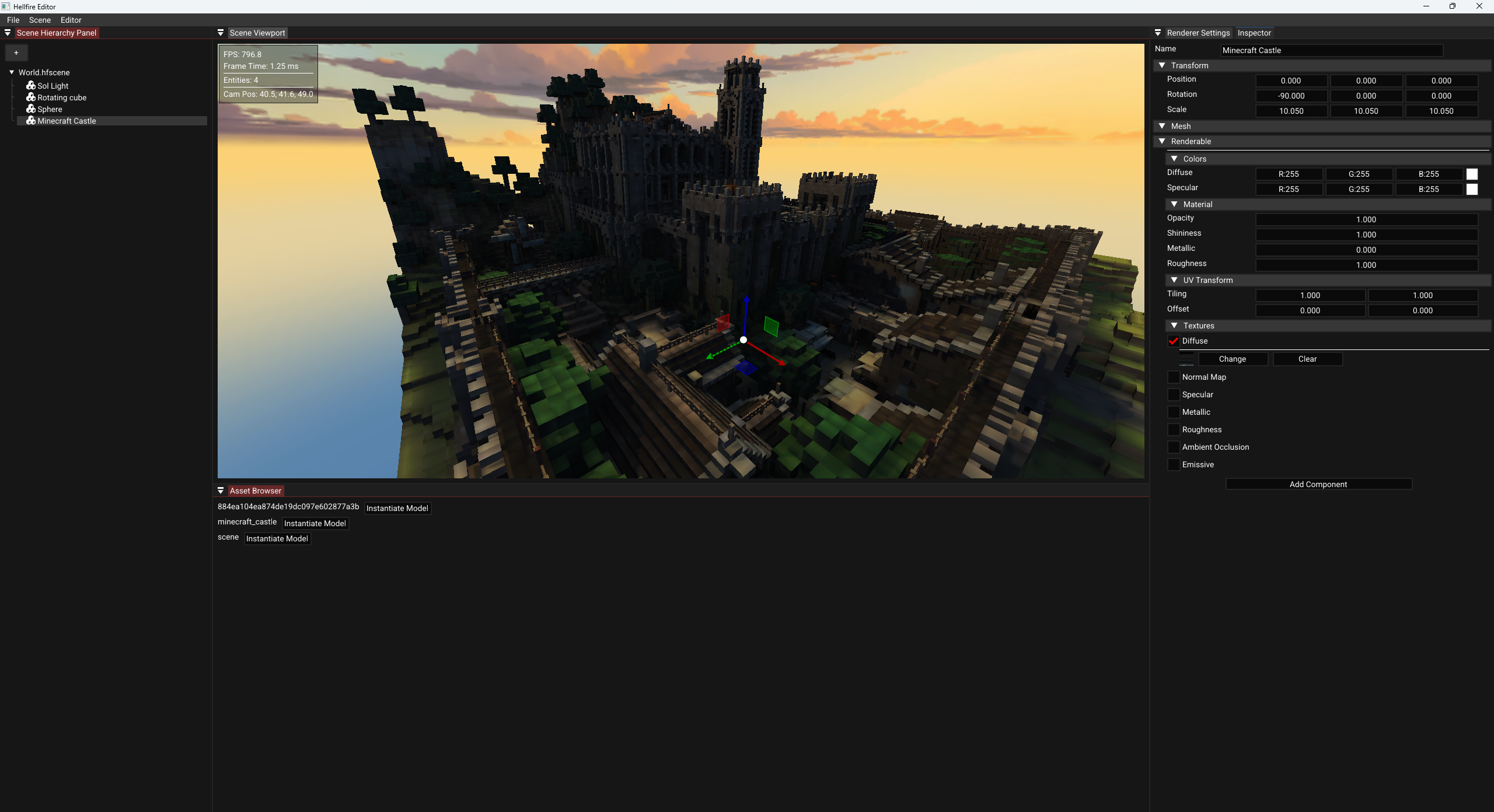

Editor

  • ImGui based interface
  • Gizmo manipulation tools
  • Real-time viewport preview
  • Project Manager
test

Note: The editor is in early development and doesn't yet expose all engine features.

Supported Platforms

Currently Windows-only with MSVC compiler support. Linux support may work with modifications but is untested.

Building the Engine

Prerequisites: Windows, OpenGL 4.3+, Visual Studio 2019+, CMake 3.14+

git clone https://github.com/OriginalDCAM/hellfire.git
cd hellfire
mkdir build && cd build
cmake .. -G "Visual Studio 16 2019" -A x64
cmake --build . --config Release

Quick Example

#include "hellfire/scene/Scene.h"
#include "hellfire/graphics/Geometry/Sphere.h"
auto* scene = new hellfire::Scene("My Scene");
auto material = hellfire::MaterialBuilder::create("Sphere Material");
material->set_texture("textures/earth.jpg", hellfire::TextureType::DIFFUSE);
hellfire::EntityID sphere = hellfire::Sphere::create(scene, "Earth", {
.material = material,
.position = glm::vec3(0, 0, 0),
.scale = glm::vec3(5.0f)
});
hellfire::MaterialBuilder::create
static std::shared_ptr< Material > create(const std::string &name)
Definition Material.cpp:54
hellfire::Scene
Manages a collection of entities and their hierarchical relationships.
Definition Scene.h:24
hellfire::Sphere::create
static EntityID create(Scene *scene, const std::string &name, const Config &config)
Definition Sphere.cpp:12
hellfire::EntityID
uint32_t EntityID
Definition ModelLoader.h:17

Design Philosophy

Hellfire uses a composition-over-inheritance entity-component system, providing flexibility and maintainability. Entities can be composed of any combination of components at runtime, enabling data-driven scene construction and simplified serialization.

Known Limitations

  • Windows-only (currently)
  • MSVC compiler required
  • Editor UI incomplete
  • No hot-reload for C++ scripts
  • Shadows not yet implemented

Documentation

API documentation is generated using Doxygen:

cmake --build . --target project_docs

Contributing

Contributions are welcome! Fork the repository, create a feature branch, and open a pull request. Please follow existing code style and include documentation.

License

MIT License - see LICENSE.txt for details.

Contact

For questions or issues, visit the Issues page.

Status: Under active development - expect breaking changes
